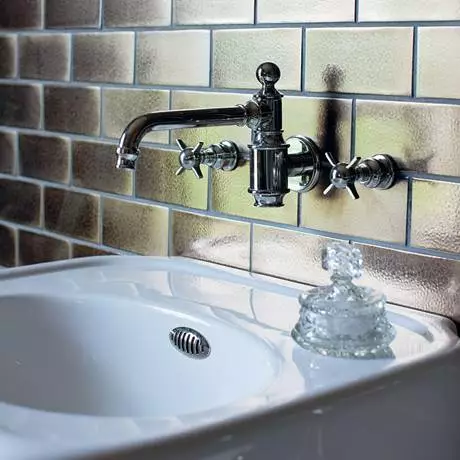

Arcade Three Hole Wall Mounted Basin Mixer – Nickel – Various Tap Head Options

The Three Hole Wall Mounted Basin Mixer from Arcade has a traditional design which has been inspired by the 19th century Belle Époque deco era. Each piece of brassware has been beautifully crafted from the finest materials and finished in a special PVD nickel coating which gives a superior finish and guarantees durability.

This tap is suitable for high and low pressure installations and is fitted with quarter turn ceramic disc headwork which provides a smooth movement. The minimum work pressure is 0.1 bar and the maximum work pressure is 5 bar. If the mains pressure is over 5 bar, a pressure reducing valve should be fitted. Supplied with an aerator and flow straightener for use with high or low water pressure. All Arcade products carry a 10 year guarantee.

Product details

• Finishes: Nickel plated
• Product Type: Traditional
• Material: Brass
• Water Pressure: Range from a minimum pressure of 0.1 bar to a maximum of 5 bar.
• Quarter turn ceramic disc valve
• Swivel spout
• Waste not included

Compliance / Approvals

BS 5412:1996
Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)

BS EN 200:2008
Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification
Supplied with aerator – this is for use with high water pressure
Supplied with Flow straighter – this is for use with low water pressure

10 year guarantee

Flow Rates

System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar
Spout (aerator) 3.5 5.5 7.7 10.76 13.08
Spout (straightener) 6.12 9.94 14.46 21.04 26.2
